Standard Series

WR300

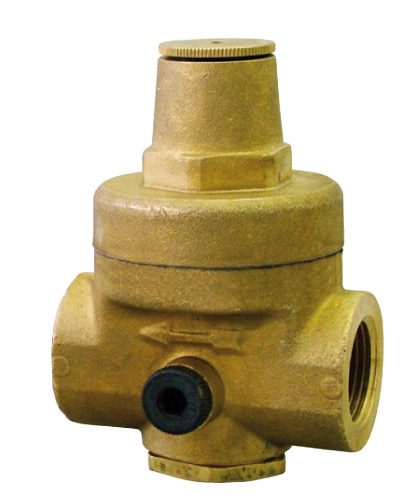

Pressure reducer compensated by a piston mechanism, suitable for light plumbing systems. Body and housing in CW617N brass. FF-MM connections with manometer holder socket. PN 25 reduction 1:4 bar.

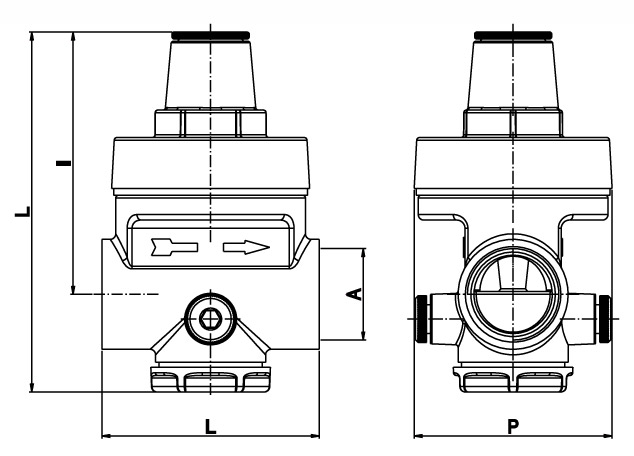

COD.	A	L	H	P	I	Gr
WR300	3/8"	52	90,5	56	68	590
WR301	1/2"	65	97	62	71,5	732
WR302	3/4"	74	107,5	66	79,5	1183
WR302E	3/4"	67	96	62	73,5	740
WR303	1"	79	129	71	94,5	1510
WR304	1"1/4	87	144	78,5	100	2158
WR305	1"1/2	106	169	97	124	3652
WR306	2"	122	188	112	130	5349

Reducer
