Flanged elbow Pipe Fitting

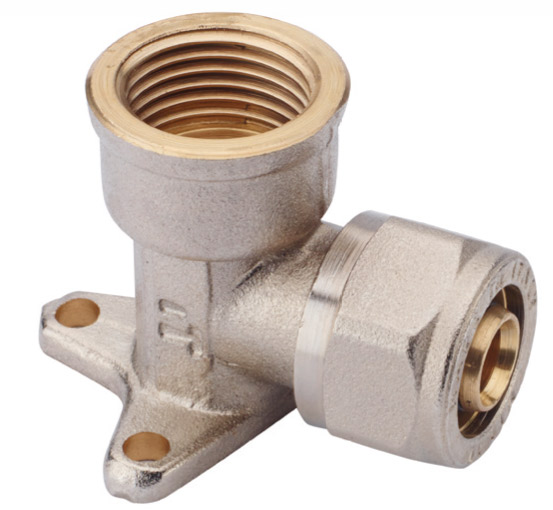

90° female fl anged elbow pipe fi tting for ISO 228 multi-layer connection for anchoring on supports

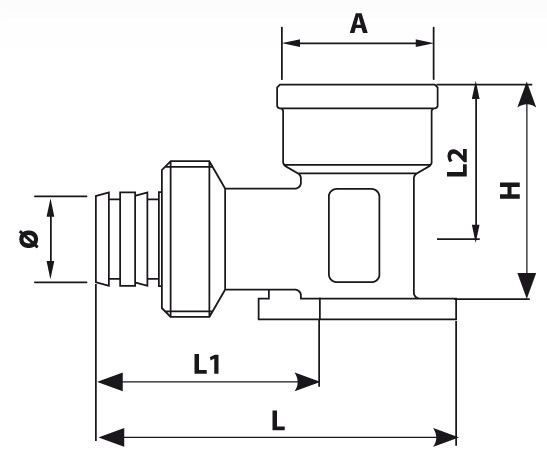

WM3811   COD. Ø A Ø L1 L2 H L WM3811 16 1/2” 16 34 26,5 39,5 55 WM3812 20 1/2” 20 35,5 27,5 40,5 58 WM3860 20 3/4” 20 45 38,5 46,5 74

Multilayer connectors
