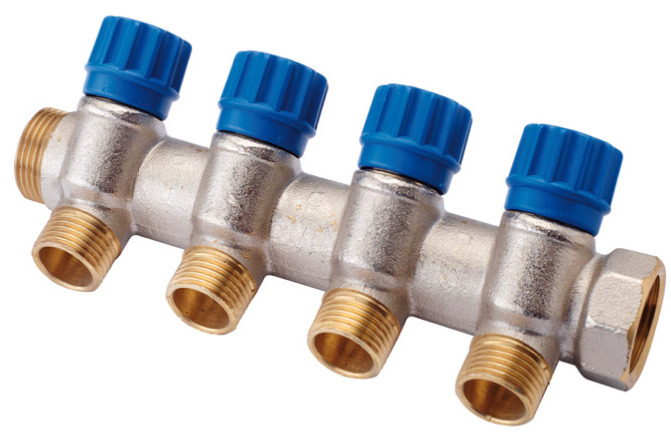

Distribution Manifolds - 4 Branches

Distribution Manifolds with operating valve 40 inter-axis

WD3709

Distribution manifold with multiple connection, 2-3-4 branches with operating valve, on request with M or F ISO 228 F sockets, 40 mm inter-axis, forged CW617N brass, 3/4”-1” MF ISO 228 connection, nickel-plated or sandblasted brass fi nish, operating hand grips available in other colours.

COD.	A	B	L	H	P	CH
WD 3709	G 3/4” MF	G 1/2” M Ø INT. 16	176	68	56	32
WD 3709/SP	G 3/4” MF	G 1/2” M SEDE PIANA	176	68	56	32
WD 3944	G 3/4” MF	24X19 M	176	68,5	56	32
WD 3711	G 1” MF	G 1/2” M Ø INT. 16	176	76	61,5	38
WD 3711/SP	G 1” MF	G 1/2” M SEDE PIANA	176	76	61,5	38
WD 3964	G 1” MF	24X19 M	176	76,5	61,5	38
